Efficient Dyn11 Transformer for Stable Power Distribution

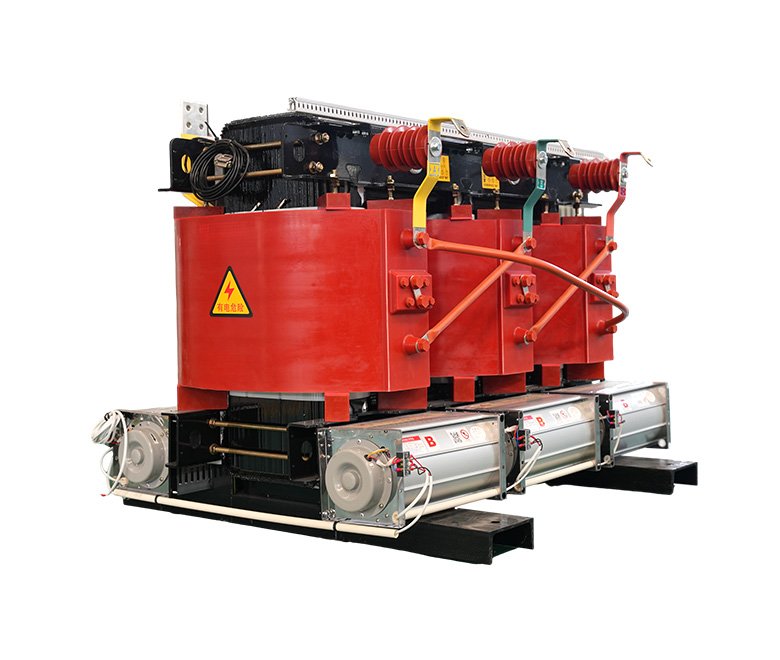

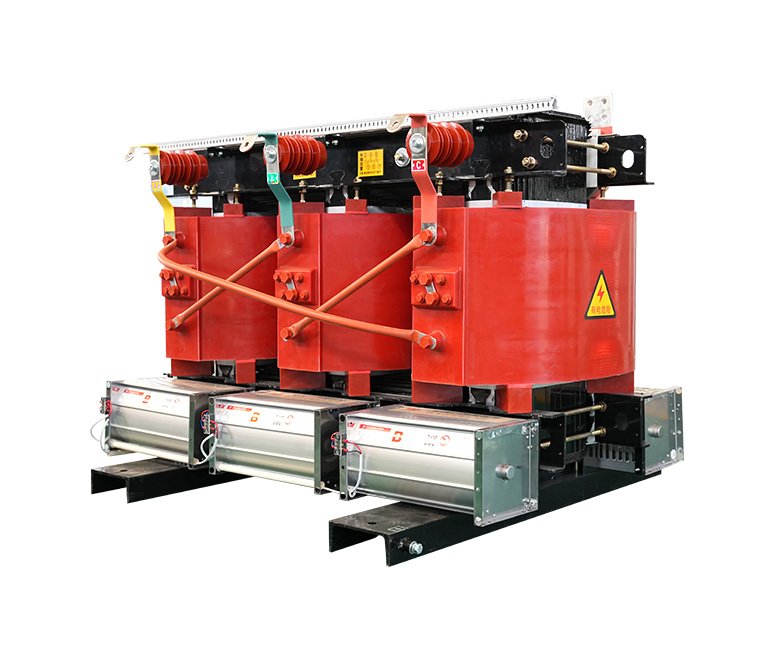

35KV epoxy pouring unlimited pressure -adjusted dry -type transformers, suitable for 35KV power grid distribution and 35kV photovoltaic product demand, energy conservation and emission reduction demand, and meet low loss and low noise demand. This type uses a F -class epoxy resin mixed with a filler. After vacuuming, the surface is injected into the surface of the coil with a glass filament -shaped grid into the surface of the surface.

In terms of mechanical strength, electrical strength, and heat resistance, this type of products have significantly improved. The insulation material has flame retardant, explosion -proof, and pollution -free performance; transformers with a temperature monitoring system can control the start and stop of the air -cooled system according to the operating temperature; it can also issue a high -temperature alarm signal and ultra -temperature trip signal at extreme temperature. This type of product can buy three materials: stainless steel, cold plate spraying plastic, and aluminum alloy as dry transformer shells. The entry and exit lines can be used to get up and up, down and up,down and down.
